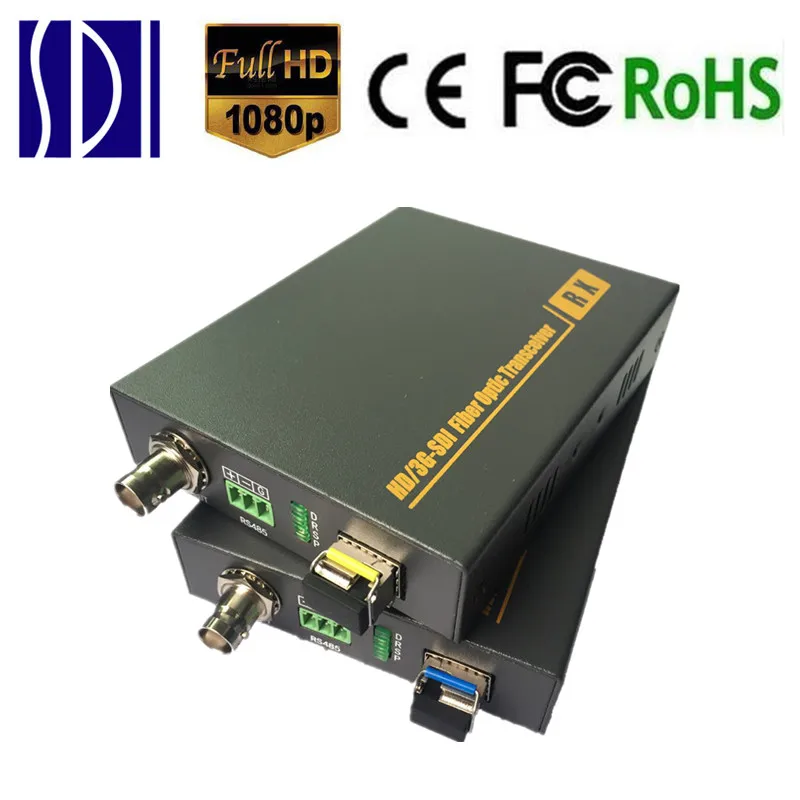

ZY-STF501 10km HD SDI Fiber Optic Extender Media Converter 3G SDI Fiber Video Transmitter Receiver With RS485 Data Over Fiber

ZY-STF501 is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.
Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of transmitter and receiver: transmitter convert SDI signal to optical signal; receiver convert optical signal to SDI signal and output.

  • SD/HD/3G-SDI video and audio transmission up to 10km.
  • Support video resolution up to 1920*1080@60Hz.
  • Automatic adapt to SDI 270Mbps, 1.4835Gbps, 1.485Gbps, 2.967Gbps, 2.97Gbps.
  • Support 1 ways reverse RS485 data control;
  • The Mouth of Light:LC light mouth ;
  • The Wavelengh: Single mode 1310 nm ;
  • LED indication: “D” light for RS485 communication ;” R” light for system operating ; “S” light for video signal lamp ;”P” light for the system indicator;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD( (Electro-Static discharge) protection system;
  • Simple to install, plug and play;

Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps, 1.485Gbps, 2.967Gbps, 2.97Gbps
Resolution 1920*1080@24/25/30/50/60Hz, 1280*720@50/60Hz, 525i, 625i
RS485 connector Industrial terminals
Baud rate Self-adaptive, Max: 115200bps
Optical fiber connector LC
type Single-mode
Wavelength Single-mode 1310nm
bandwidth 2.97Gbps/1.25Gbps
Transmission distance Single-mode: 10km
Power adapter: DC 5V/2A
Power dissipation MAX 2.5W
Temperature -5 ~ +70
Humidity 5% ~ 90%
Size 135*90*25mm
Warranty 1 year

Package List:

1.SDI fiber optic transmitter———-1 pcs

2.SDI fiber optic receiver————–1 pcs

3.SFP optical module——————2 pcs

4.Power plug——————————2 pcs

5.User manual—————————1 pcs
