Top Quality 500ft 20~60 KHz IR USB KVM Over TCP IP Extender 1080P USB HDMI KVM IR Extensor 150m Via RJ45 Cat5e Cat6 Cat7 Cable

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount.

Top Quality 500ft 20~60 KHz IR USB KVM Over TCP IP Extender 1080P USB HDMI KVM IR Extensor 150m Via RJ45 Cat5e Cat6 Cat7 Cable

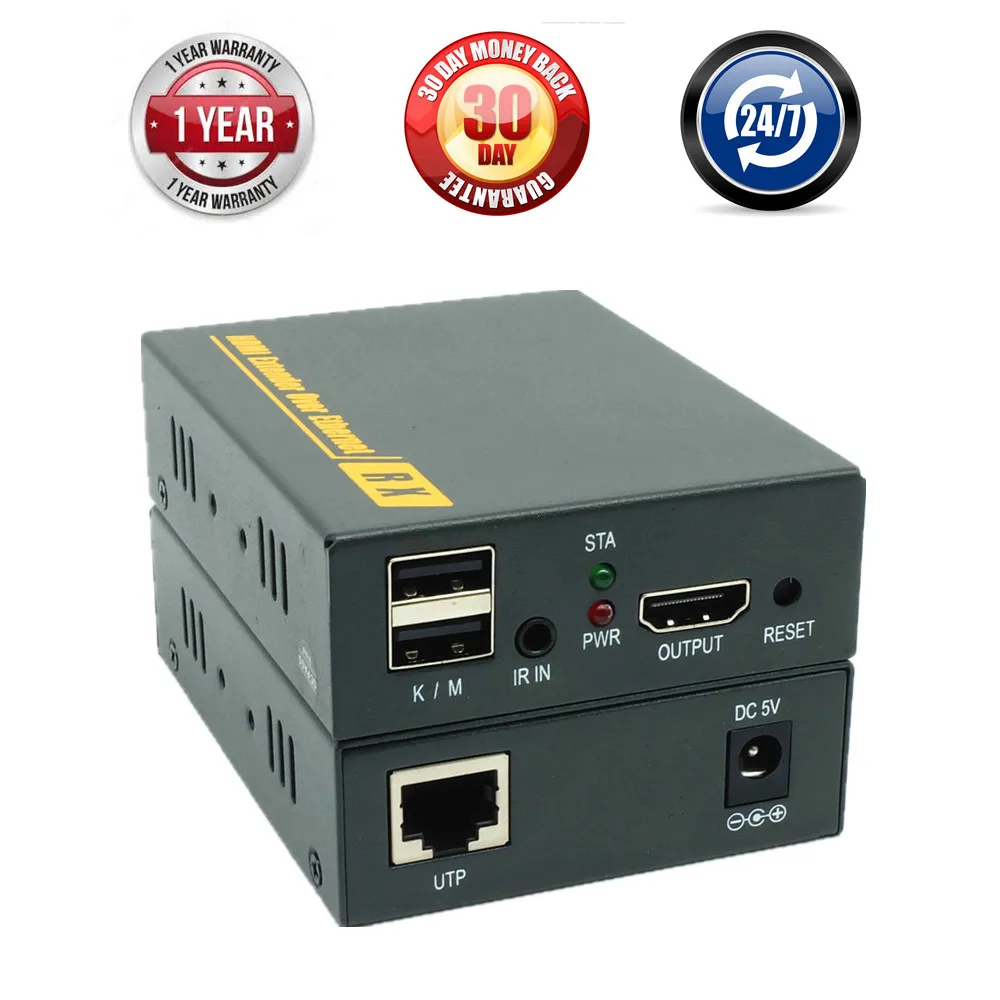

ZY-DT103KM,The extender provides extension of HDMI signals long distances over a single CAT6/7 cable, it supports high resolution up to 1080P, Keyboard and mouse signal and unidirectional 20~60 KHz IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

• Transmits HDMI video and audio signals up to 150m/500ft over a single CAT6 cable;
• Support video resolution up to 1920*1080P@60Hz;
• Audio: sampling rate: 32kHz, 44.1kHz and 48kHz ;
• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
• Support keyboard and mouse(HID signal) transmission;
• Support over TCP/IP and local EDID;
• Support unidirectional 20~60 KHz IR transmission;
• Compliance with HDMI 1.3 and HDCP 1.2 standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution 1920X1080P@60Hz
Connector HDMI-A
USB Interface PC: Type B USB interface; connect to pc;
K/M: connect USB keyboard and mouse;
USB signal HID Signal
IR frequency 20~60kHz
UTP Interface RJ45/IEEE-568B
Transmission distance CAT6—150m

CAT7—-180m
Power supply The power adapter: DC 5V/1A
Power dissipation MAX 3W
Temperature Operating: -5~ +70
Humidity Operating: 5% ~ 90%
Dimension 92*70*25mm
The warranty 1 year free warranty

1.Q: What is local EDID with HDMI KVM IR Extender?

A: EDID: It is extended display identification data,Press the button 3 seconds, the TX will copy the signal data, like auto-match.They remember the EDID information if you plug them off the power adapter and them turn them back again.

2.Q: What kind of video signal device is compatible with HDMI KVM Extender?

A: DVR, PC, Tablet, Monitor etc(please let us know the brand and models of the device)

3.Q: What is the resolution of input video signal?

A: 720P@60Hz, 1024×767@60Hz, 1080P@60Hz, etc.

4.Q: What kind of cables in need ?

A: Input cable: HDMI cable,Output cable: HDMI Cable,CAT5e/6 cable

5.Q: What kind of output device is compatible with HDMI KVM Extender?

A: TV, Monitor, DVR,NVR etc (please let us know the brand and models of the device)

6.Q: Mouse and Keyboard Brand?

A: Logitech, Microsoft, AOC,A4TECH, HID device (please let us know the brand and models of the device),But it can not support wireless keyboard and mouse.

7.Q: What is the required bandwidth? Is it working on a 100MB LAN ?

A: It required bandwidth is 70~80 MB. So, it can work on a 100 MB LAN.

8.Q: Can it be transmit through network to remote area?

A: Yes, it can be transmit through LAN(Local Area Network) to remote area,But it can not work over Internet.

9.Q: My country has one low tariff threshold, I don’t want pay the tax to the customs, could you help me ?

A: To avoid the tax and fee caused by the customs, we will write low value (Generally US$20) and as gift on the label to some countries (Only by China Post or Other Post ways).
