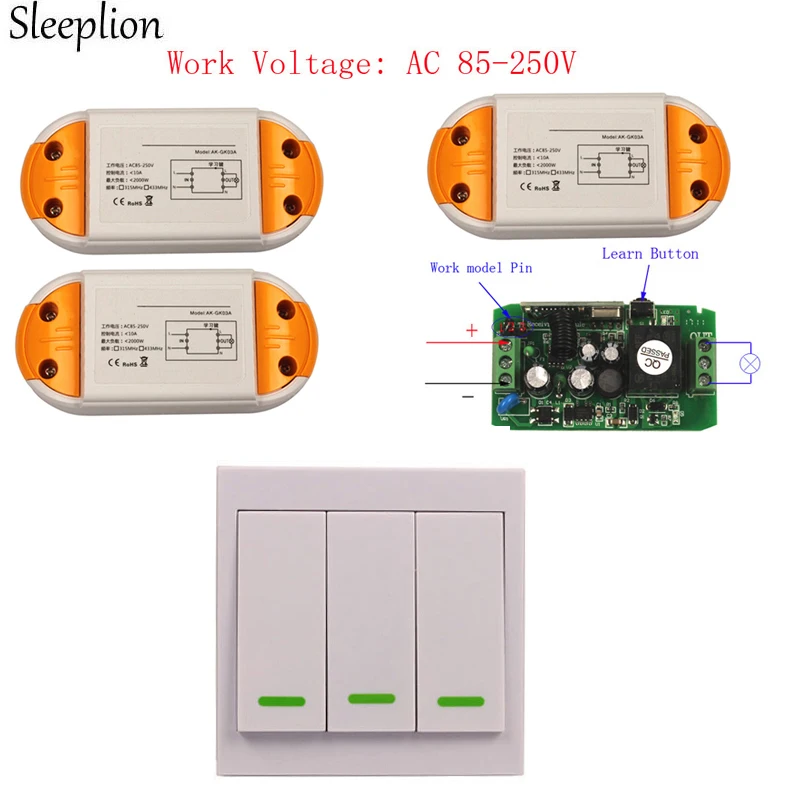

Sleeplion Switch Wireless Wall Remote Control Light Switch 3 Digital Receivers 110V 220V 85V-250V ON/OFF
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
Wireless switch mainly used in lighting,LED,Fans.computer, electric doors, windows, lifting equipment, motor control, pumps, lifts control and security industry and other fields.Wireless switch Relay can Simplified circuit.Especial in home LED light fan,very convenient for Home electronics voltage 85V-250V(110V 220V),More convenient wiring combination.
Channel: 1 CH
Working Voltage: DC 16V-50V,50V-80V,AC110V,220V,250,85-250V,(AC/DC) 16V-250V
Working Frequency: 315MHz
Max Current: 10A
Contact Capacity: 30A/250VAC; 30A/30VDC
Work AC/DC voltage:DC 16V-50V,50V-80V,AC110V,220V,250,85-250V,(AC/DC) 16V-250V
Power:<2000W(Max),Suggest 0-1000W to work.
Operating Temperature: -40’C~+80’C
Output State:Momentary/Toggle/Latched (adjusted freely by the Jumper on the receiver.)
Receiver Sensitivity: -105dBm
Code: Learning code
Switch work model:
1.Self-lock/Toggle: Work model Pin T+M(2+3)Connect
2.Latched/Inter-Lock: Work model L+M(1+2) Connect
3.Momentary/Jog : Work model L M T(123)All un-connect
1.Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter).
2.Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON, press another button is stop/OFF.(1 channel switch(receiver) need 2 buttons remote control (transmitter).
3.Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF. 1 channel switch(receiver) need 1 button remote control (transmitter).
Remote Switch Transmitter : Remote Control Distance: 50 meter(open) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box) Work frequency: 315MHz Encode: Fixed code, soldering Power Supply: 1 x 27A-12V battery
Learn code to add remote control:
1 Connector the switch to 110V or 220V ..
2 press the switch board learn button (1-3 second),till the switch LED lighting..
3 after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.
4 test the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.
Remove Remote control:
1 Connector the switch to 110V or 220V ..
2 Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.The remote controller can not control the switch relay.
The remote controller(Transmitter) need to learn the switch relay(Receiver) control code,or that remote control(Transmitter)can not control the switch(Receiver).We will compatible switch after send the order to you.
1/2/3 X Wall Remote control transmitter (Battery included)
3 X switch receivers (With cover)
