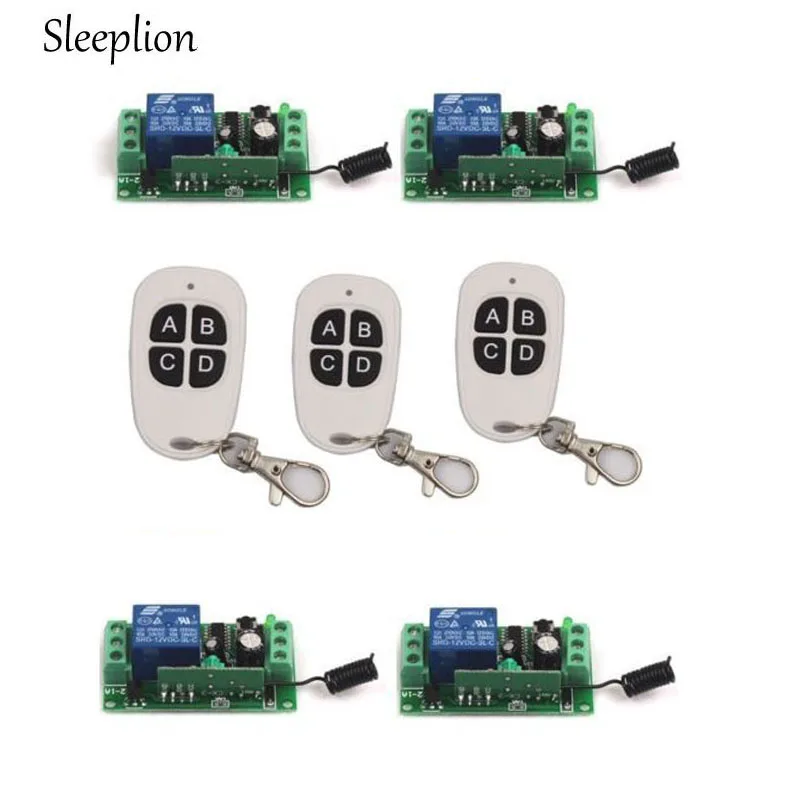

Sleeplion DC 12V 1CH 10A RF wireless remote control switch system teleswitch 3 transmitter with 4 receiver relay 315MHz/433MHz

Features

The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,Door,Motor Car… and other 12V Power.. it can used for 12V Relay Module…..

Specification:

1.Transmitter

Operating Voltage: DC 12V

Operating Current: 6MA

Operating Frequency: 315/433 MHz

Frequency Distance:0-50 meter(open) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box)

Encode: Fixed code, learning code, rolling code

2.Receiver

Channel: 1CH

Decode: Learning code (jog/Non-Latched(Default) .self-lock /Self-Latched,.inter-lock/Latched

)

Working Voltage: DC 12V

Output Current: 10A

Rated load:10A 250VAC / 10A 125VAC

10A 30VDC / 10A 28VDC

Receiver Sensitivity: -105dBm

Working temperature : -40\’C – +80\’C

Size : 55*30*18mm

Output way : Jog, Inter-lock, Self -lock is Adjustable

WorkingModel/output way:

The Work model can change in the switch board work pin.(1.Jog/momentray:All Model-pin not connector. 2.Self -lock/Self-Latched: Model (pin1+Pin 2) Connector Or (Pin2+pin 3) connector.3 Inter-lock /Latched:(Pin2+pin 3) Or (Pin1+Pin2) Connector)

1. Jog/momentray: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.

2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.

3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.

Add remote control method

1 Connector the switch to 12V..

2 press the switch board learn button (1-3 second),till the switch LED lighting..

3 after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.

4 test the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.

Remove Remote control:

1 Connector the switch to 12V ..

2 Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.The remote controller can not control the switch relay.

Packing list:

4 x Switch Receiver

3X Remote control(battery include)
