Sleeplion 220V 1CH 1CH 10A Wireless Remote Control Switch Relay 8 Receiver ,315/433.92 MHZ
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,socket,Window,Door,Motor, Car… and other 110/220V Power.. it can used for 110/220V Relay Module…..
Operating Voltage: DC 12V
Operating Current: 30MA
Frequency Distance: 50 meter(open/ideal) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, Soldering
Decode: Learning code
Working Voltage: AC110V/ 220V (180V-240V)
Output way: Self-lock defaults ,(other model can change by yourself)
Maximum Load Current: 10A
Rated load:10A 220/110V
Receiver Sensitivity: -105dBm
Working temperature : -40\’C – +80\’C
Size : 55*30*18mm
The Work model can change in the switch board work pin.(1.Jog/momentray:All Model-pin not connector. 2.Self -lock/Self-Latched: Model (pin1+Pin 2) Connector Or (Pin2+pin 3) connector.3 Inter-lock /Latched:(Pin2+pin 3) Or (Pin1+Pin2) Connector)
1. Jog/momentray: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Add remote control method
1 Connector the switch to 110/220V..
2 press the switch board learn button (1-3 second),till the switch LED lighting..
3 after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.
4 test the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.
Remove Remote control:
1 Connector the switch to 110/220V ..
2 Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.The remote controller can not control the switch relay.

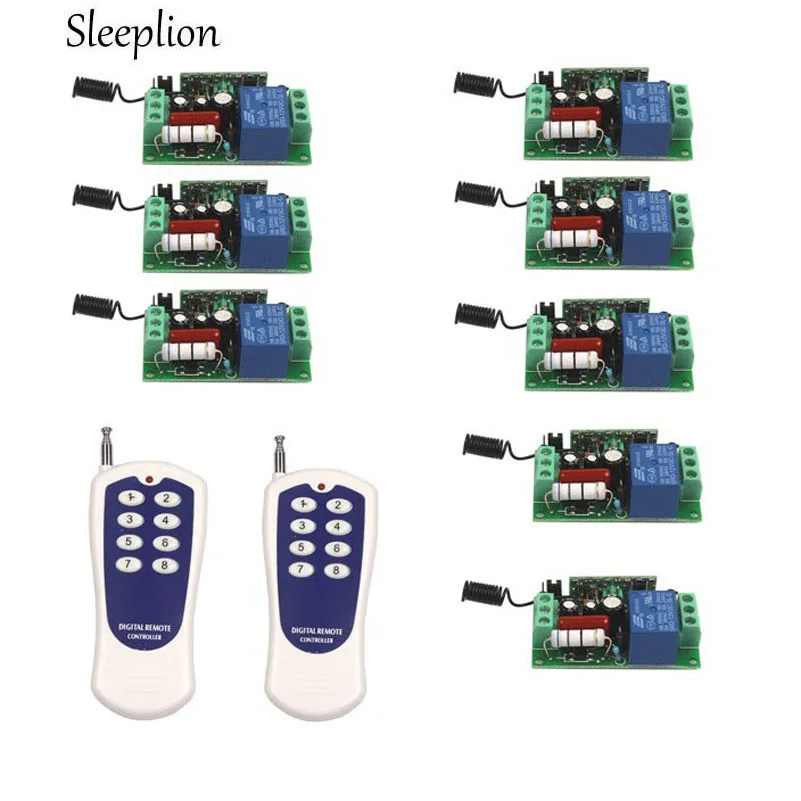

8 x Receiver switch
2 x wireless remote Transmitter (Battery include)
Shenzhen Mangood Electronic Technology Co. , Ltd
Every order we will guarantee you received!any problems will give you satisfied resolve, rather than negative or open dispute,please contact us first!!TKS !
Wholesale order,we can give more than 5-10% discount.
The order processing time usually within 3-5 work days .
The order delivery time depend your countr customs and post office,usually(20-45 work days)
Favorable combine transportation :
1. The order more than 4Kg or more valuable,many country can free shipping by DHL.USPS or EMS, except some remote area(add some remote area fee)
Guarantee and Return Policy:
When you receive the items within 7days,The items not as the descriptions or any other reasons, please E-mail us first ,we will help you resolve it.
Since your feedback is very important to our business`s development, we sincerely invite you to leave positive feedback for us. It will just take you 1 minute. Thank you!
