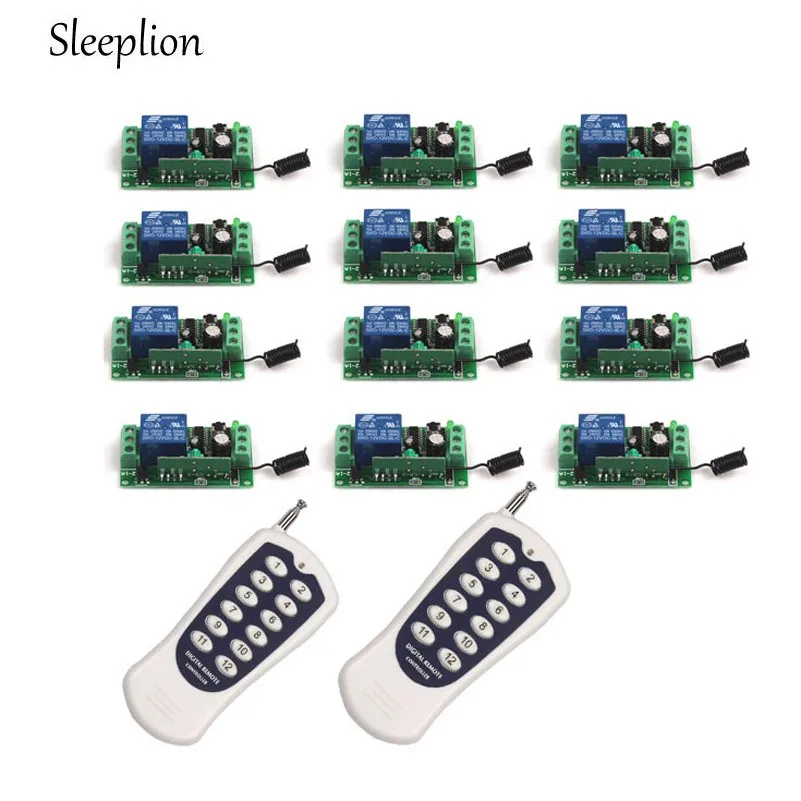

Sleeplion 12V 1CH Channel 12 Way Wireless RF 12-key Remote Control Switch Transmitter+12 Receiver 315/433MHz
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
The Wireless switch Relay can Universal used many Home or Industry in Circuit ,and Electronic product ,like TV,Lights,Lamp,Fans,LED,Computer,Door,Motor Car… and other 12V Power.. it can used for 12V Relay Module…..
Operating Voltage: DC 12V
Operating Current: 6MA
Operating Frequency: 315/433 MHz
Frequency Distance:0-50 meter(open) in theory, 15%-50% in reality(In open environment,receiver antenna outside the box)
Encode: Fixed code, learning code, rolling code
Decode: Learning code (jog/Non-Latched(Default) .self-lock /Self-Latched,.inter-lock/Latched
Working Voltage: DC 12V
Output Current: 10A
Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC
Receiver Sensitivity: -105dBm
Working temperature : -40\’C – +80\’C
Size : 55*30*18mm
Output way : Jog, Inter-lock, Self -lock is Adjustable
The Work model can change in the switch board work pin.(1.Jog/momentray:All Model-pin not connector. 2.Self -lock/Self-Latched: Model (pin1+Pin 2) Connector Or (Pin2+pin 3) connector.3 Inter-lock /Latched:(Pin2+pin 3) Or (Pin1+Pin2) Connector)
1. Jog/momentray: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Add remote control method
1 Connector the switch to 12V..
2 press the switch board learn button (1-3 second),till the switch LED lighting..
3 after press the remote control button, till the switch LED lighting.. the relay will be ON or OFF.
4 test the controller control the switch.. press the control button, the relay will be on and off.. you can hear it.
Remove Remote control:
1 Connector the switch to 12V ..
2 Press the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.The remote controller can not control the switch relay.
12 x Switch Receiver
2X Remote control(battery include)
