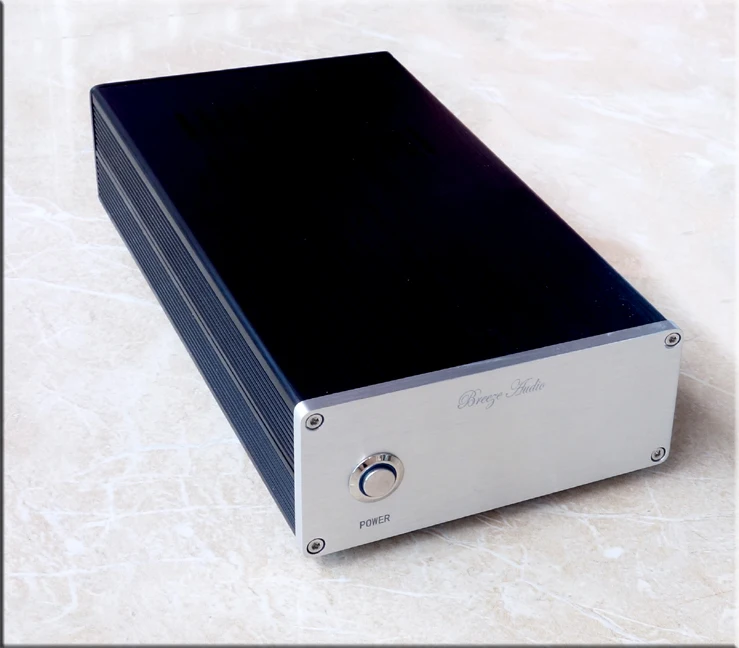

Mshow 120W DC Linear Power Supply DC Output 5V upgrade for SMSL M8A / TOPPING D50 / Raspberry pi 3 or 9v for M8 DAC audio HIFI
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
it is big current and low noise good to upgrade for SMSL M8A / TOPPING D50 / Raspberry pi 3 or 9v for M8 DAC audio HIFI The core program is LM317 plus TL431 benchmark, and with Toshiba good sound high-power tube 2AS1943 expansion, compared to the general LT317 LT1083, higher accuracy and better thermal stability, added to the TL431 as a benchmark regulator on the rise of 1- 2 levels, lower noise, lower ripple. The cost is not high, of course, with a good capacitor, high-speed tube, BI adjustable, the filter is NOVER gold 10000UF, output with a class LC filter to further eliminate high frequency noise. The whole machine material full, heavy About 3KG, all aluminum chassis, the output can be customized according to customer requirements, 5V 9V 12V 15V 24V, the current maximum 8A, but because the current is large, when the load power is a certain temperature, And switching power supply is not the same, but also very normal. We offer DIY customization services. We provide input voltage AC220V-230v version, AC100V-115V version Transformer: the use of professional pure copper audio transformer, enough power 120w, durable quality (professional enthusiasts level materials, not the general market similar products than) The use of aluminum chassis, shielding performance Output DC output line plug size 5.5mm * 2.1mm (can be customized other models size plug) We provide output voltage customization services. Need to customize the service customers please contact our staff. Dimensions: 131 Width X55 High X Length 249mm We routinely provide sales parameters: Specifications Input voltage: AC 220V default,if you need AC110 INPUT,you can tell me. Output voltage 1: DC-5V 2: DC-9V 3: DC-12V 4:DC-15V 5:DC-24V Power Polarity: inner “+” external “-” DC Head Size: Outer diameter 5.5mm, internal diameter 2.1mm Packing included: Finished Power supply *1pcs Power cord not include DC output line* 1pcs package weight is about 3.5KG
