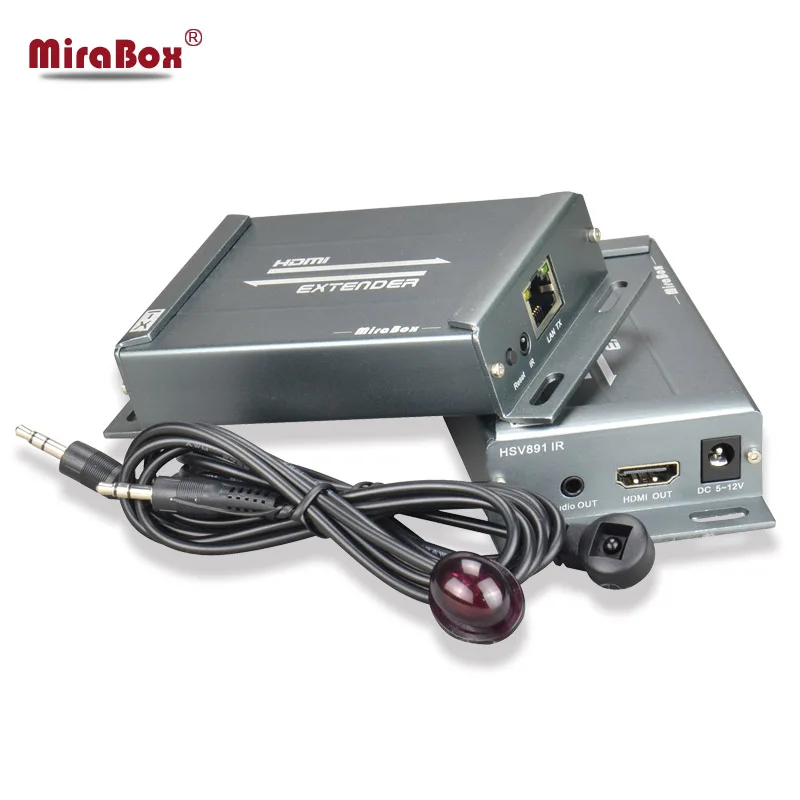

Mirabox HSV891-IR Hdmi Extender with IR control over TCP/IP with Audio Extractor support 1080p cascade receivers up to 150m

Mirabox HSV891 IR Hdmi Extender with IR control over TCP IP with Audio Extractor support 1080p
Click to see details
Mirabox HSV891 IR Hdmi Extender with IR control over TCP IP with Audio Extractor support 1080p
HTB1BVmhhN9YBuNjy0Ffq6xIsVXa0
HTB1lbkaXqQoBKNjSZJnq6yw9VXa4
HTB13KSTif9TBuNjy1zbq6xpepXas
HTB1U494ieOSBuNjy0Fdq6zDnVXav
HTB1ifTmikCWBuNjy0Faq6xUlXXaD
HTB1LXGwcXkoBKNjSZFEq6zrEVXaK
HTB1WbN9ccj_B1NjSZFHq6yDWpXaC
HTB16JyyibGYBuNjy0Foq6AiBFXak
HTB1wGKlcgKTBuNkSne1q6yJoXXao
HTB1tv9iigmTBuNjy1Xbq6yMrVXaZ
HTB1xJa5ih1YBuNjy1zcq6zNcXXaX
HTB1Q3iDiXuWBuNjSszbq6AS7FXab
HTB1dhWMiaSWBuNjSsrbq6y0mVXaH
HTB1SPfliamWBuNjy1Xaq6xCbXXaU
HTB1opEdXz7nBKNjSZLeq6zxCFXaJ
HTB1Hm6tauySBuNjy1zdq6xPxFXaZ
HTB1fZLrav1TBuNjy0Fjq6yjyXXai
HTB1SxnsauuSBuNjSsziq6zq8pXaM
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $83.98 / piece
Sale price:  US $46.19 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HSV891-IR Hdmi Extender ir over TCP/IP with Audio Extractor support 1080p cascade receivers HDMI extender ir by Rj45 Receiver RX

Please noted that this price is for 1 pcs receiver(RX).

(This item is only receiver from HSV891-IR HDMI Extender over TCP/IP with Audio extractor,don’t included sender. It is for the buyer who want to buy extra one or more receivers. If you want to buy 1 pair HSV891-IR HDMI Extender over TCP/IP with Audio extractor, please go to our stroe page to parchase.)

Introduction

This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers. HSV891IR supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices. HSV891IR also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket. HSV891IR have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.

Noted:

1. COST-EFFECTIVE SOLUTION- Extend HDMI audio/video signals over a cost effective CAT5/5e/6/6e cable up to 525ft, Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, run a CAT5/5e/6/6e cable from the Transmitter to Receiver, then connect your HDTV/projectors from a remote location to the Receiver with an HDMI cable; An HDMI cable is required and sold separately. 2. HDMI Splitter + Extender, Over Router or IP Switch, Support Multi-receiver upto 253pcs- The connection like: hdmi source—HSV891IR Sender—CAT5/5e/6/6e cable—switch—CAT5/5e/6/6e cable—Multi-HSV891 IR Receivers—Monitor, HDTV, Projector, or other HDMI screen. 3. Build-in 3.5mm R/L Audio Extractor- Solve Monitor Without Speaker / Poor Sound Quality; Resolution Supported- 1080p@50Hz / 1080p@60Hz / 1080p@24Hz / 1080i@50Hz / 1080i@60Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz 4. IR REMOTE CONTROL(20~60KHZ)- Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5/5e/6/6E cable for convenience 5. EASY INSTALLATION – Just Plug and Play, No driver required; Surface mountable metal housing with included brackets allows easy placement; Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference * Note: A good quality CAT5/5e/6/6E cable is essential in delivering quality content; CAT6/6E is recommended for better performance

Specification

Power Supply: DC 5~12V/1A IR Frequency Range: 20KHz~60KHz Resolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz Working Temperature: -10°C ~ 60°C Link Connection: UTP/STP CAT5/5e/6 3.5mm Audio Output: 60mW THD<0.1% SNR 110dB Power Consumption: 3W(max)each Working Mode: *Point to Point mode *Broadcast mode( Point to MultiPoint) *Cascade mode Transfer Distance: Point to Point Mode: CAT5 100meters CAT5e 120meters CAT6 150meters Relative Humidity: 20% ~ 90% RH(Non-condensing) Dimensions: 123x64x25mm Weight: 110g each

Package contents:

1) Receiver *1+IR Receiver*1 2) User Manual *1 3) Power adapter*1
