Lossless No delay HDMI Over CAT5e CAT6 KVM UTP Extender 100m Support Loop Out & 5.1 Dolby-true HD Audio USB KVM Extensor By RJ45

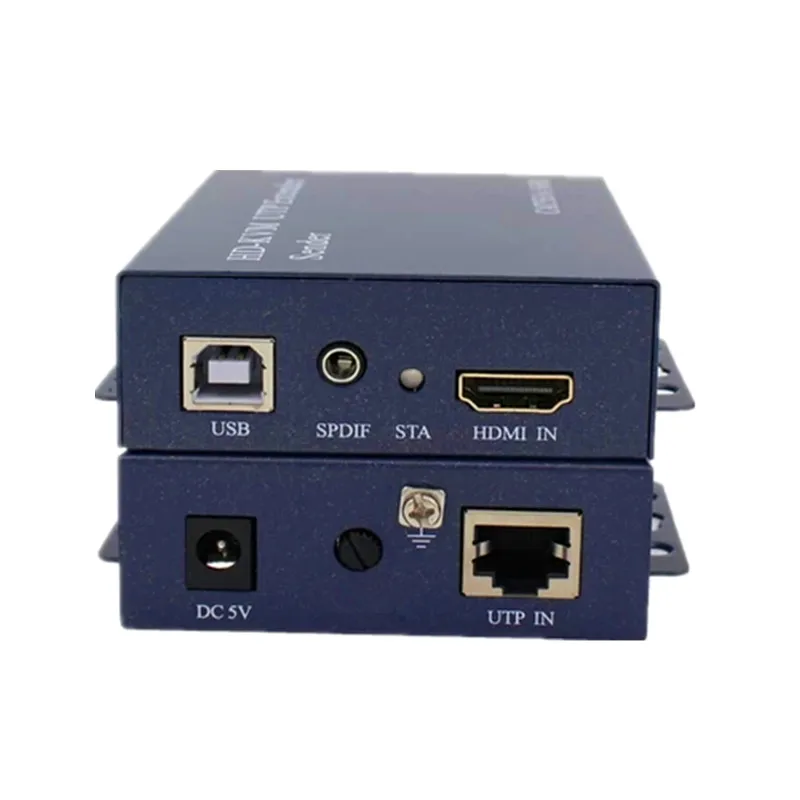

ZY-HT208KM,HDMI USB KVM extender provides extension of HDMI signals long distances over a single CAT5e/6 cable , it supports high resolution up to 1920×1080@60Hz,It also support HDMI loop out,external stereo audio signal and keyboard/mouse signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

• Transmits HDMI video and audio signals up to 100m/330ft over a single CAT6 cable,up to 80m/264ft over single CAT5e cable;
• Support video resolution up to 1920*1080@60Hz;
• Audio: sampling rate: 32kHz, 44.1kHz and 48kHz ;
• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
• Support keyboard and mouse signal transmission;
• Support 3.5mm audio signal transmission;
• Support HDMI loop out function, can match many kind display device;
• Compliance with HDMI 1.3 and HDCP 1.2 standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play.

Note:

USB port :

1.It can transmit HID signal,It is unicast signal!It only support one to one application,You can control the show of HDMI source by one keyboard and mouse.

2.It can connect USB port to Scanner,Touch screen,keyboard and mouse.

3.If you want to connect to other device,please contact me!We will give you the best reply timely!

Parameter Description
Video Standards HDMI 1.3, HDCP 1.2
Maximum Pixel Clock 165MHz
Max Data Rate 6.75Gbps
Resolution Max: 1920X1080@60Hz
Connector HDMI-A
USB Interface PC: Standard MINI-USB
K/M: Standard USB
USB Signal HID Signal
UTP Interface RJ45
Transmission Distance CAT6 Max: 100m/330ft

CAT5e Max:80m/264ft
Other Power Supply DC 5V/1A
Power Dissipation Max: 3W
Temperature Operating: -20 ~ +70
Humidity Operating: 5% ~ 90%
Dimension 94.5*71*26mm
The warranty 1 Year Free Warranty

​Package List:

1.HDMI transmitter——-1 pcs

2.HDMI receiver———-1 pcs

3.Power plug————–2 pcs

4.User manual————1 pcs

5.USB cable————–1 pcs

6.Lenovo Mouse———1 pcs

1.Q: What is package with HDMI KVM Extender?

A:Package:1 pcs HDMI transmitter,1 pcs HDMI receiver,2 pcs power plug,1 pcs user manual,1 pcs USB cable,1 pcs Lenovo mouse.

2.Q: What kind of video signal device is compatible with HDMI KVM Extender?

A: DVR, PC, Tablet, Monitor etc(please let us know the brand and models of the device)

3.Q: What is the resolution of input video signal?

A: 720P@60Hz, 1024×767@60Hz, 1080P@60Hz, etc.

4.Q: What kind of cables in need ?

A: Input cable: HDMI cable,USB cable,Output cable: HDMI Cable,

CAT5e/6 /7cable.

5.Q: What kind of output device is compatible with HDMI KVM Extender?

A: TV, Monitor, DVR,NVR etc (please let us know the brand and models of the device)

6.Q: Mouse and Keyboard Brand?

A: Logitech, Microsoft, AOC,A4TECH, HID device (please let us know the brand and models of the device),But it can not support wireless keyboard and mouse.

7.Q: Can it support external stereo audio signal?

A: Yes, it can be transmit external stereo audio signal.
