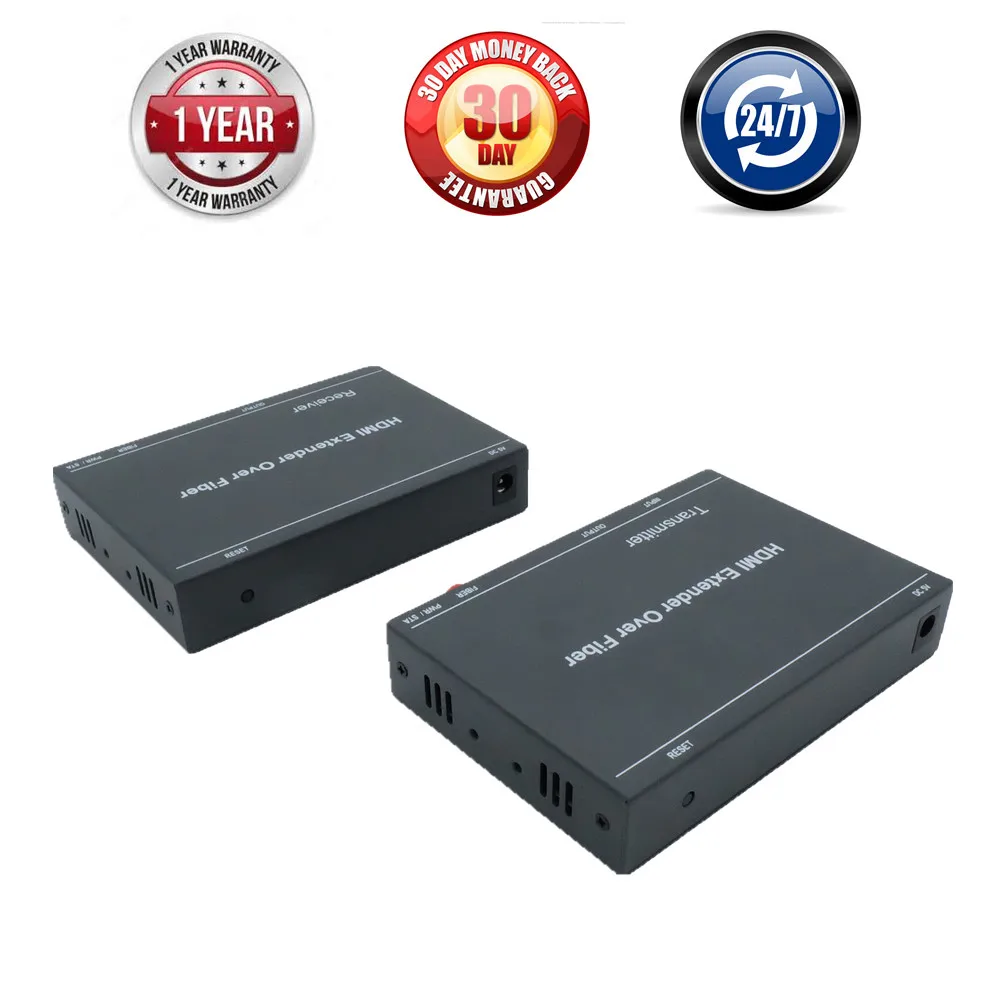

LKV378 H.264 HDMI Fiber Optical Video Audio TX RX Converter Over Fiber Optic Transmission With HDMI Extender 20km By SC FC Cable

ZY-DT212,H.264 HDMI extender is standard Ethernet TCP/IP protocol, through the single fiber transmission distances of 1920X1080@60Hz HD audio and video signals, can be achieved with Ethernet network one-to-many application, at the same time with local HDMI output.The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.

  • Transmits HDMI video and audio signals up to 20km over one FC/SC fiber optic cable;
  • Support video resolution up to 1920*1080P@60Hz;
  • Audio: sampling rate: 32kHz, 44.1kHz and 48kHz ;
  • Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
  • Support Compressed format H.264 technology;
  • Support over TCP/IP ;
  • Transmitter side have 1 port HDMI Local output(HDMI loop out);
  • Special format is used to compress and decompress video, effectively improve the Transfer efficiency, to ensure that the playback fluency;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • Able to automatically identify and configure the various display modes;
  • Built-in automatic balance system, the picture is fluent, clear, stable;
  • Built-in ESD electrostatic protection circuit, all-round protection system security;
  • Installation easy and convenient, plug and play, do not need to set up.

Parameter Description
Video Standards HDMI 1.3, HDCP 1.2

Compressed format H.264

Maximum Pixel Clock 165MHz
Maximum Data Rate 6.75Gbps
Resolution Range Max:1920X1080P@60Hz
Connector Female HDMI Type A
Impedance 100Ω

Interface bandwidth 155Mbps

Optical Fiber Interface SC/FC Connector
Fiber Type Single Mode
Wavelength 1310nm, 1510nm
Interface Bandwidth 6.25Gbps
Transmission Distance Standard: 20km,
Other Power Supply The Power Adapter: DC 5V/2A
Power Dissipation Max: 5W
Temperature Operating:-5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 120*82*23mm
The Warranty 1 Year Free Warranty
