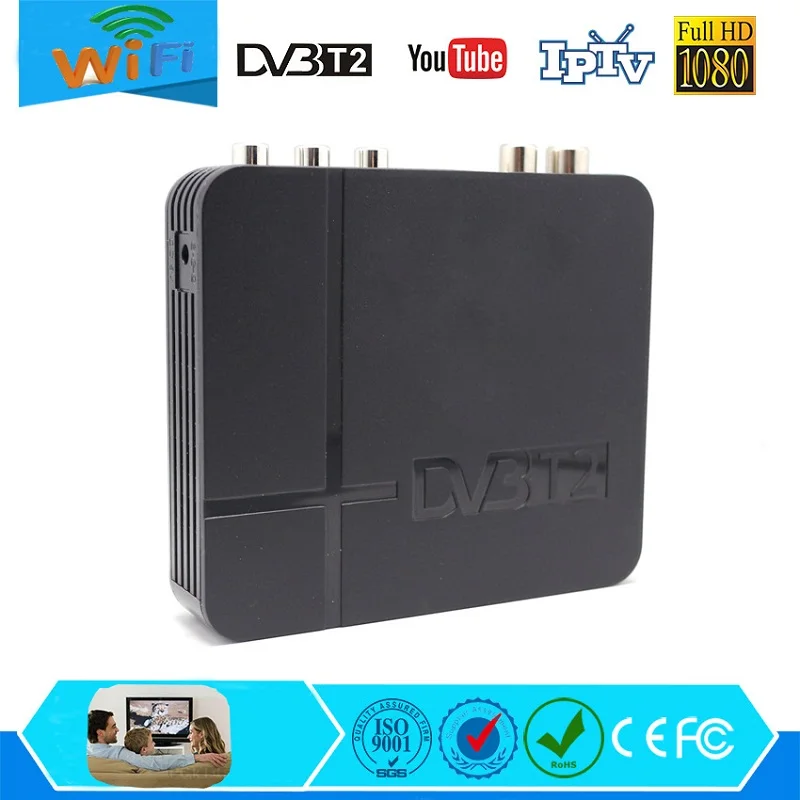

HD Digital Set Top Box DVB-T2 K2 Terrestrial Receiver TV Tuner Receptocoder DVB T2 Digital TV Box Support WIFI H.264 PVR MPEG4

Feature:

CPU: MSTAR-MSD7T01 (128pinos) 34Kf MIPS @ 600 MHz.
Memory: MSTAR-MSD7T01 implant DDR2 32X16Mbit Frequency1066
Flash: 32 M bytes.
Demodulator Type: MSTAR-MSD7T01 implant
Tuner: Rafael R836.
Demodulation:
Terrestrial Receiver DVB-T2 / T (EN_302755 V1.3.1 / EN 300744).
RF input frequency: 48 ~ 866 MHz.
Bandwidth: 6 MHz, 7 MHz, 8 MHz.
Constellation: QPSK 16-QAM and QAM-QAM.
FEC: 1/2, 3 / 5.2 / 3, 3/4, 4/5, 5/6.
Guard interval: 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4.
FFT Mode: 2K / 8K / 32K.
Entry level: -83–5dBm.
Software Features:
Fully comply with DVB-T / T2 and H.264, MPEG-4, MPEG-2 standard
The maximum speed of traffic flow at least 50 Mbit / sec.
It supports 3D interface.
Supports Sleep timer.
Supports teletext / subtitle / muti-language.
EPG function powerful and highly effective.
Auto, 16: 9 pillar box, 16: 9 G Pan Scan, 4: 3 Letter Box, 4: 3 Pan Scan G, 4: 3, 16: 9 widescreen
USB 2.0 for PVR, Timeshift, software update and playback media files.
Video output resolution: 480i / 576i / 480p / 576 p / 720p / 1080i / 1080p.
Video decoder: Compatible with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818.
MPEG-4 Simple / Main / Advanced Profile @ LEVEL3 (10 Mbps).
MPEG-2 main profile # Main level (15 Mbps).
H.264 MP # L3 (10 Mbps). H.264 HP L4.1 (25 Mbps).
MediaCodec: AVI. MPG ,. DAT ,. VOB ,. Div ,. MOV ,. MKV ,. JPEG ,. TS etc.
Audio: WMA, MP3, AAC (WMA, m4a.).
Photo Codec: JPEG, BMP, PNG.

Note:

the product does not support 1080p high-definition videos with Dolby sound effect. But it also supports andere1080p high-definition videos.

Specifications:

1 MLStandard DVB-T2/ High Definition MPEG4 AVC/H.264HP@L4,MPEG-2MP@HL
2 Automatic PAL/NTSC conversion
3 2000 channels TV and Radio programmable
4 The maximum speed of the traffic flow of at least 50 Mbit / sec
5 8 different favorite groups selection
6 Fully support to 7 days Electronic Program Guide(EPG)
7 JPEG BMP GIF support,Flesh tone extension,Black/White extension
8 4/8/16-bit OSD with anti-flickering
9 Channel search in automatic, manual and network search
10 Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
11 Parental control for channels
12 Plug and Play installation, with an ease to use Menu System
13 Software upgrades through USB/Cardreader
14 Time set by GMT offset automatic and manual,Summer Time support
15 5 event timers,off/Once/Daily/Weekly/Monthly Mode
16 Subtitle support
17 VBI insertion for Teletext,CC and WSS
18 Automatic save for last channel
19 Support Logic Channel Number(LCN)
20 Active Antenna Power supply control

Package Included:
1x High Definition Digital Terrestrial Receiver
1x RCA cable
1x IR Remote Control
1x power adapter
