Attention:

1. Please make sure that your LCD is ok before bidding this item, or you will be responsible for the incompatibility.

2. If you concern much about resolution setting, please reconsider before bidding! But you could choose programmer here to solve.

3. We will try our best to prepare the right kit for you, such as writing the corresponding program into the controller board, selecting the suitable LVDS cable and the suitable inverter. But as we don’t have an LCD exactly as yours at hand, we can just test the controller with our own LCD. For yours, you need to test it yourself to check if it works well or not. As you know, there are so many LCDs with many varieties in the market, sometimes we can’t promise the exact compatibility. Please consider it before bidding! However, we have gained many success in preparing the kit for our customers in real store. So why not have a try to get surprise!

4. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

5. After finishing the connecting, please don’t rush to power on! First, use multi-meter to test whether the GND of the LCD is connected with the GND of the controller board. If not, please check the connection again. If yes, please test whether there is a short circuit between the red wires and black wires of the LVDS cable. If there is a short circuit, it means opposite connection or other errors. Any problem, please feel free to contact us. DIY needs a certain professional knowledge, please kindly take the responsibility of the risk. No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which may cause unavailability of the controller board.

M.NT68676.2A HDMI+DVI+VGA+AUDIO LCD Controller Board +12V 4A Power Adapter+1.5m HDMI cable

Condition: New

Function: Turning a bare LCD panel into a working screen. Especially good for reusing old laptop LCD screen (in good condition, but mother board died)

About controller board kit

Specifications:

M.NT68676.2Acontroller is suitable for Asia-Pacific market. It can support LED/LCD panels which resolution is up to 2048×1152.

M.NT68676.2Acontroller can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.

M.NT68676.2Acontroller can support dynamic contrast control, headphone input and Digital volume control simultaneously.

Top view of M.NT68676.2A controller

Front view of M.NT68676.2A controller

Feature:

PCB Dimension:

The size of M.NT68676.2A controller is 139mm(L)*58mm(W)*17mm(H)

This LCD Controller board has a HDMI+DVI+VGA+AUDIO port. It supports LCD displays with a LVDS interface. The max resolution that it supports is 2048*1152.

If you bid, please tell us the Display Model no. of your LCD, then we will check if it is compatible and choose suitable accessories for you.

The panel model no. can usually be found written on a sticker on the back of the LCD panel, and “SAMSUNG LTN150XF-L01” is an example.(disassemble it from its plastic shell and find the sticker)

More details of your LCD like the datasheet are welcome to send to us for further confirmation.

About power adapter

Please note that only EU,UK and US power cords are available at present. If you have the right power cord, it would be ok to connect to our power adapter.

Our adapter’s output connecter size is: Internal Diameter – 2.5mm / External Diameter – 5.5mm

About HDMI cable

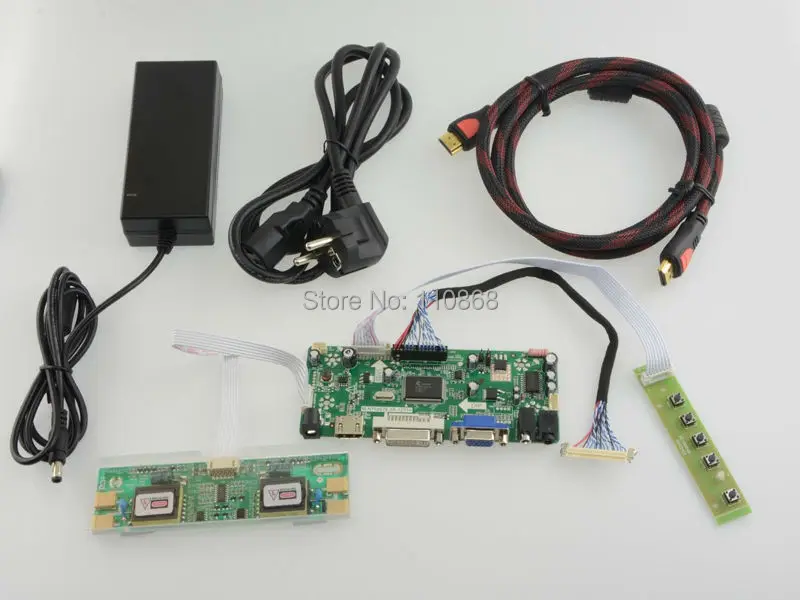

Package includes: A M.NT68676.2Acontroller, a suitable LVDS cable, a suitable inverter and a 5-key keypad, 12V 4A power adapter,1.5m HDMI cable.

Programs available for this M.NT68676.2Acontroller

AUO_B101EW01_V1_SI6L_1280X720_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M185XW01_V0_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M190EG02_V4_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M190EG02_V4_NT68676_CVT_7KEY_A_PowerOn_LOGO_NONE_0Adj_R11352_CVT_2012427_17924

AUO_M201EW02_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M215HW01_V0_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M215HW01_V6_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M215HW01_VB_NT68676_5KEY_A_ENG_FHJ_111229

AUO_M220EW01_V0_NT68676_5KEY_A_ENG_FHJ_111229

AUO_RDT271WLM_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M185B3_LA1_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M201P1_L03_C1_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M215H1_L01_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M236H1_L01_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M260J3_L01_NT68676_5KEY_A_ENG_FHJ_111229

CMO_M260J3_L01_NT68676_CVT_7KEY_A_PowerOn_LOGO_NONE_3Adj_R11352_CVT_2012428_115940

CMO_M260J3_L01_NT68676_EO_CVT_7KEY_A_PowerOn_LOGO_NONE_3Adj_120428

CMO_V260H1_LE2(LC420WUN)_MAPEO_NT68676_DEF_ENG_PWON_ADJ3V_5KEY_A_YDW_20120224

CMO_V260H1_LE2(T315HW07)_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327

CMO_V260H1_LE2(V420H1-L07)_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327

CMO_V260H1_LE2_MAPEO_NT68676_DEF_ENG_PWON_ADJ3V_5KEY_A_YDW_20120224

CMO_V260H1_LE2_NT68676_5KEY_A_ENG_FHJ_111229

CMO_V260H1_LE2_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327

HBT_AUO_M215HW01_VB_NT68674_A_5KEY_CN_0xD372_R10165_HCF_120105

HBT_AUO_M220EW01_V0_NT68674_A_5KEY_CN_0xC114_R10165_HCF_120105

HSD101PFW3_SI6L_1024X600_NT68676_5KEY_A_ENG_FHJ_111229

HV121WX6_SI6L_1280X800_3V_NT68676_5KEY_A_20120402

INL_MT190AW01_NT68676_5KEY_A_ENG_FHJ_111229

INL_MT190AW01_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_R11352_CVT_2012413_135155

INL_MT215DW01_V1_NT68676_5KEY_A_ENG_FHJ_111229

LG_JV_LM215WF4_NT68676_5KEY_A_ENG_FHJ_111229

LM230WF5_TRA2_2_NT68676_5KEY_A_ENG_FHJ_111229

LP171WP4_TLB1_DO6L_1440X900_3V_NT68676_5KEY_A_ENG_FHJ_111229

LPL_LM170E03_NT68676_5KEY_A_ENG_FHJ_111229

LTI320AP01_SI8L_1366X768_12V_NT68676_5KEY_A_ENG_FHJ_111229

LTN156AT15_1366X768_SI6L_NT68676_DEF_SCH_5KEY_A_YDW_20120308

NVT_1024X768_NT68676_5KEY_A_ENG_FHJ_111229

NVT_1366X768_NT68676_5KEY_A_ENG_FHJ_111229

NVT_1440X900_NT68676_5KEY_A_ENG_FHJ_111229

NVT_1600X900_NT68676_5KEY_A_ENG_FHJ_111229

NVT_1680X1050_NT68676_5KEY_A_ENG_FHJ_111229

NVT_1920X1080_MAP1_NT68676_5KEY_CN_R10432_HCF_120214

NVT_1920X1080_MAP1_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_0Adj_R11352_CVT_2012415_11247

NVT_1920X1080_NT68676_5KEY_A_ENG_FHJ_111229

SAM_LTM220M2_L01_NT68676_5KEY_A_ENG_FHJ_111229

SAM_LTM230HT05_M01_NT68676_5KEY_A_ENG_FHJ_111229

XINGXIN_LP101WX1_SLN2_1280X800_SI6L_NT68676_5KEY_R11284_0XDEDA_HCF_120405

Working example with N089L6-L02 LED panel:

Working example with CLAA070NA01CW LED panel:
