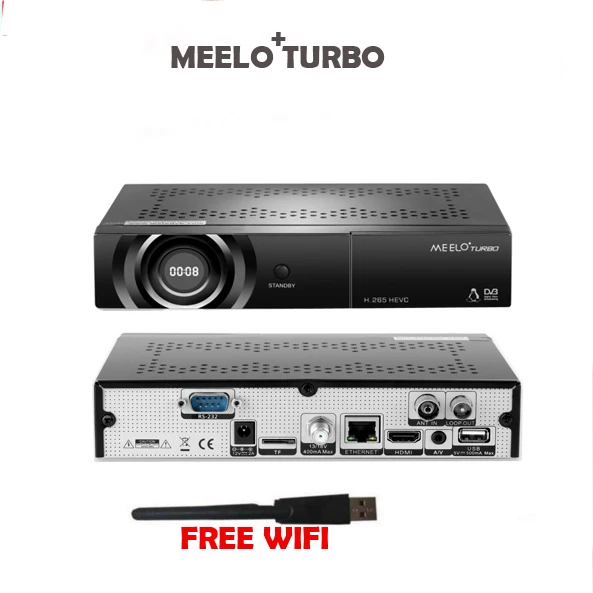

5pcs 2018 Newest MEELO TURBO DVB-S2/T2/C Satellite TV Receiver 1080P FULL HD Linux OS 4K Set top box MEELO BCM 73625

5pcs 2018 Newest MEELO TURBO DVB S2 T2 C Satellite font b TV b font font
Click to see details
5pcs 2018 Newest MEELO TURBO DVB S2 T2 C Satellite font b TV b font font
HTB1MdztSpXXXXaqaVXXq6xXFXXX8
HTB1424HfmYH8KJjSspdq6ARgVXaq
HTB124hIPVXXXXcSaXXXq6xXFXXXJ
HTB1W1PUSpXXXXXAXXXXq6xXFXXXz
HTB1PKm
HTB1424HfmYH8KJjSspdq6ARgVXaq
HTB1BP_eSpXXXXaaapXXq6xXFXXXl
HTB14RvPSpXXXXciXXXXq6xXFXXX7
HTB1NZMiLXXXXXc5XFXXq6xXFXXXy
HTB1zuIcLXXXXXcEXVXXq6xXFXXXS
HTB1hk7yLXXXXXaxXXXXq6xXFXXXu
HTB1yKwXLXXXXXb4XVXXq6xXFXXXn
HTB1qskeLXXXXXa
HTB1XokhLXXXXXabXVXXq6xXFXXXa
HTB1pTwALXXXXXadXXXXq6xXFXXXS
HTB1raz9LXXXXXaUaXXXq6xXFXXX4
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $424.00 / lot


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

5pcs 2018 Newest MEELO TURBO DVB-S2/T2/C Satellite TV Receiver 1080P FULL HD Linux OS 4K Set top box MEELO BCM 73625

Ⅰ. Brief Function:

1: 1080P FULL HD DVB-S2&T2&C

2: H.265/HEVC/AVC

3: Supported AVS+

4: Supported XBMC

5:CAS,2xUSB,PVR Ready

6:TF card:Micro SD card for recording,16GB,64GB,128GB(optional)

7:Support USB WiFi

8:Support Network Sharing(CCCAM ,NEW CAM)

9:Support Youtube, IPTV, WEBTV,.

10: Display:7 Segment – 4 Digits Display (White)

11:technical support website www.melodvb.com

Ⅱ.Hardware Features

1.Front panel

Size:L:200MM W:140MM H:40MM

Button:Standby

USB2:USB 2.0 High Speed HOST

Smartcard:Smart card slot (Xcrypt and Conax embeded)

display:7 Segment – 4 Digits Display (White)

IR:38KHz

2.Back panel

Output Interface:A/V Out (Phone Jack), HDIM, ETHERNET,RS232, USB,TF,DVB-S/S2 IN(13V/18V 400mA Max),ANT IN(T2/C ),LOOP OUT(T2/C)

HDIM1.4:HDIM 576p, 720p, 1080i ,1080P

3.Remote

4.STB Assembly

Configured according to customer requirements

5.Accessories

Cable1:HDIM Cable

power adapter:110-240V AC / 50-60Hz ,12V 2A

Remote :1XRemote control

Ⅲ.. Main Features:

Standard: 1080P FULL HD DVB-S2&T2&C

MEPG:H265 / HEVC-Support (1080p @60fps),SD&HD-compatible/MPEG-2/MPEG4 /H.264

H.265/HEVC/AVC;

Supported AVS+

Supported XBMC

OSD Language:

Auto Languager seletion:English German French Portuguese Spanish Italian and so on

Linux OS:

Premium Twin HD is based in Linux and has many features that makes it unique.It supports HbbTV,YouTube,DLNA,has an embedded Media Player and a lot more.

TF:Micro SD,You can easily connect an SD device,to record,Pause and playback

USB:Double USB (In Back Panel and Front Panel),High speed USB 2.0

ETHERNET:10/100Mbit Ethernet connection, Support youtube and network media, CCCAM,Wireless Network with connected Miracle WIFI adapter

CAS:1×Smartcard readers

Hard-drive and recording:

2× USB 2.0(1×Front and 1×Rear),You can easily connect an USB device,to record,Pause and playback

display:7 Segment – 4 Digits Display (White)

PIP:PIP(picture in Picture)at the same transponder

HD 1080P:HDIM-connection with Full HD 1080P

EPG:Advanced EPG(Program Guide) Supported EPG recording/playback

Channel Search:Channel search in automatic, manual and network search

Parental Ctrl:Parental control for channels

Easy Menu:Plug and Play installation, with an ease to use Menu System

Ⅳ.Electric Performance

1.Main Chip Sets

Flash Memory:256MB NAND Flash

DDR3 Memory:512MB DDR Memory

CPU;BCM 73625, 2×750 Mhz / 2000 DMIPS

Demodulator IC:Integration in the main control chip

2.DVB-S2 Tuner

Input Frequency Range:950MHZ-2150MHZ

Input Impedance:75Ω

RF input Signal LEVEL:-80/-20dBM

Active Ant Power:13/18V DC @ 400mA MAX,Overload Protection

3.DVB-S2 Channel Decoder

Demod standard:DVB-S2 Standard

1–45 Mbaud for DVB-S mode and 2–45 Mbaud for DVB-S2 mode

MPEG Profile Level:H.265/HEVC/AVC/AVS+ Main and Main10 Profile up to 1080p 60fps,VC-1,MPEG2 , MPEG4 Part2, AVC/H264

Demodulation:QPSK, 8PSK

FFT SIZE:2K、8K

Code Rate:QPSK rates 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10; 8PSK rates 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

4.DVB-T/T2/C Channel Decoder

Demod standard:Fully integrated LNA,Tuner,DVB-T2 & DVB-T & DVB-C demodulators

DVB-T2:EN 302 755, Supports all DVB-T2 modes,including:Single and multiple-PLPs;6\7\8MHZ,QPSK,16QPSK,64QPSK,256QPSK

DVB-T:EN 300 744,6/7/8MHZ,QPSK,16QPSK,64QPSK

DVB-C:EM 302 429,8MHZ,16/32/64/128/256QPSK

5.USB Decode

DVR supporting:Stereo/MONO/Left/Right

Media Supporting:

Dual USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card.

File system:FAT12, FAT16, FAT32, NTFS (only support first partition)

USB2.0 High Speed HOST:DVR with USB HDD, Time shifting with USB HDD

6.Video Decode

Broadcom Video Network with Motion Compensated Video Processing

Video Decoding:MPEG-2,MPEG-4 compatible H.265/HEVC/AVC/AVS+ Main and Main10 Profile up to 1080p 60fps,VC-1,MPEG2 , MPEG4 Part2, AVC/H264

Input data rate:2-45 Msymb/s

Video Resolution:480i, 480p, 576i,576p, 720p, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, and 1080p60 output formats

7.Audio Decode

Audio Decoding:Dolby Digital,MPEG-4(AAC-HE) MPEG-1/2/3

Sound Mode:LEFT/RIGHT/STEREO/MONO

Sampling Frequency:32/4.1/48kHz

8.AV Output[A/V Out (Phone Jack)]

Video Bandwidth:5.5MHz(-3dB)

Video Impedance:75Ω

Video Voltage Level:1.0 Vp-p

Audio Freq. Range:20~20KHz

Audio Impedance:600Ω

Audio Voltage Level:2V rms(5.6Vp-p)

9.Environment

Input Voltage:AC:110-240V / 50-60Hz ,DC:12V 2A

Consumption:24W Max / 1W Standby (it’s optional by customer’s board)

Temperature:0℃ to +50℃

Humidity:<95%

10 Mechanical

Mechanical Type:plastic + Iron

Dimension:W:200mm D:140mm H:40mm

Weight:0.533kg

11 Packing

Type:10 PCS/ One outline box

Outline Size:360*266*398mm

Color Box Size:252*188*68mm

Net Weight:5.33kg(10*0.533g)

Gross Weight:10.13kg
