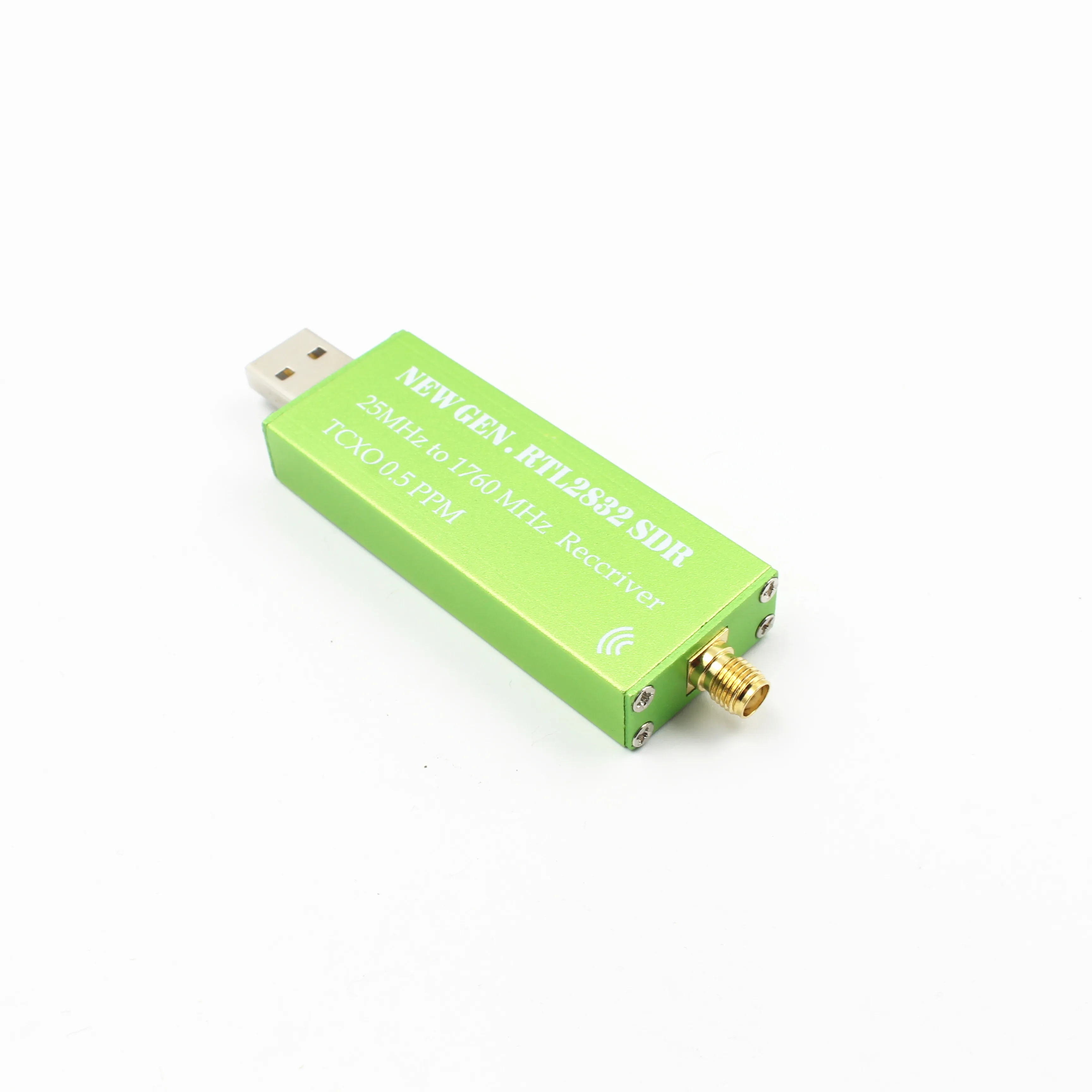

1pcs 25MHZ to 1760MHZ RTL SDR Receiver Support AM/NFM/FM/DSB/USB/L R820T2 RTL2382U Mini Wireless Current Receiver
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
Your satisfaction is our final goal.
5 stars positives feeback would be appreciated. hope you could introduce our store to your friends.
Please don’t leave any negative feedback or open dispute without communication, thank you.
Any negative or dispute will hurt both sides, and won’t let the problem really be solved. If you have any questions , please feel free to contact us , we will try our best to help, Thanks. Product Details:
Model NESDR SMArt
NooElec SKU 100701
1pc NESDR SMArt SDR w/ brushed aluminum enclosure
Installation Guide & Software
Applications Software defined radio, DVB-T, ADS-B
Interface IC Realtek RTL2832U
Tuner IC Rafael Micro R820T2
Clock Accuracy 0.5PPM (max)
Instantaneous Bandwidth 2.4MHz (nominal); 3.2MHz (max)
Frequency Range 25MHz-1700MHz (nominal)
Antenna Input Female SMA
Dimensions (SDR only) 17mm x 14mm x 65mm
You spoke, we listened! This premium RTL-SDR was designed, developed and fabricated by NooElec in the USA and Canada in order to implement a wide array of feature requests.
The NESDR SMArt contains the same ultra-low phase noise 0.5PPM TCXO used in our much smaller Nano 2+ (TCXO specifications below), ensuring ultimate tuning stability in nearly any environment
In the quest for lower noise, the power supply section was redesigned to implement an RF-suitable voltage regulator with under 10 µVRMS of noise. That is at least 10x lower than other designs!
A quality shielded inductor was used in the power supply to improve EMI rejection
The included aluminum enclosure ensures stray EMI stays where it belongs–away from the sensitive RF circuitry
Lower board-level temperatures further improves the SDR noise floor
A custom heatsink is affixed to the primary PCB with 3M thermal adhesive, to wick heat away from the circuit board and towards the enclosure
2 separate silicone thermal pads spread the rest of the heat away from the device hot spots.
Power consumption has been reduced by an average of 10mA, which means less heat is generated compared to other designs
The result is much lower board-level temperatures–increasing stability, improving sensitivity and ensuring maximum frequency range capability. The changes were first simulated, and then field-tested with a Flir E8
Form factor improvements
The NESDR SMArt was designed to minimize annoying USB port occlusion. We re-designed the SDR from the ground up to ensure the SMArt can be used side by side in any USB-compliant device, including tightly-spaced embedded devices. There is no need to remove the enclosure to run multiple SDRs beside one another!
The form factor re-design allowed us to move to the more universal SMA antenna input
NESDR SMArt SDR w/ brushed aluminum enclosure
2 year manufacturer warranty
SDR Clock Specifications
Frequency stability: 0.5PPM (max)
Phase noise @1kHz offset: -138dBc/Hz (or better)
Phase noise @10kHz: -150dBc/Hz (or better)
Phase noise @100kHz: -152dBc/Hz (or better)
RTL2832U Demodulator/USB interface IC
R820T2 tuner IC
0.5PPM, ultra-low phase noise TCXO
RF-suitable voltage regulator
Shielded primary inductor
Integrated custom heatsink
Female SMA antenna input
High-quality black brushed aluminum enclosure
Through-hole direct sampling pads on PCB
