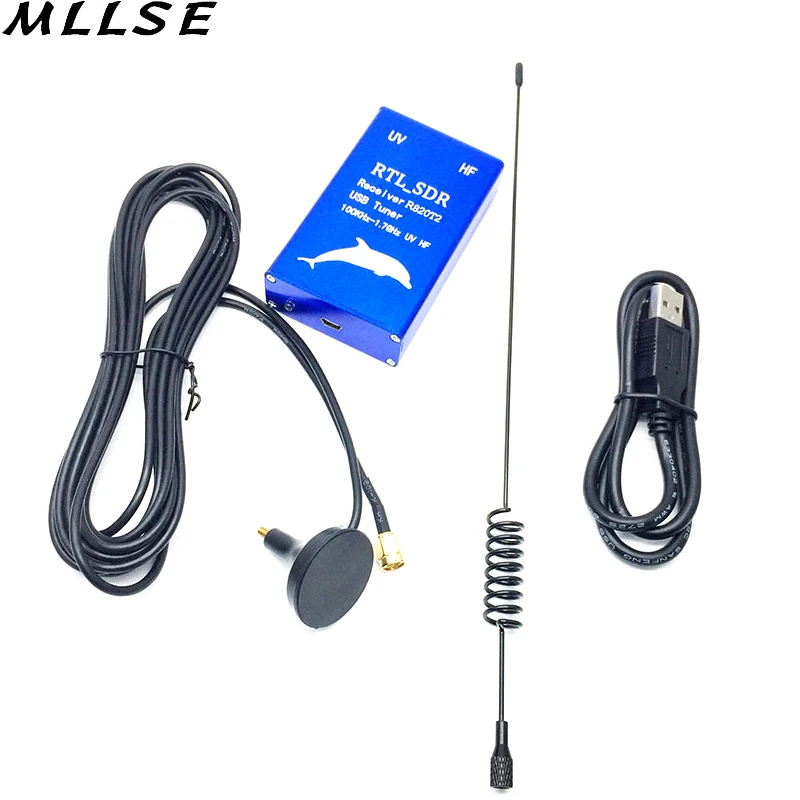

WELCOME TO OUR SHOP 100KHz-1.7GHz Full Band Software Radio RTL-SDR Receiver RTL2832U+R820T2 Aeronautical Band TV Receivers

Note:

1.Due to the difference between different monitors,there are color differences,pls understand.

2.Please allow 1-3mm errors due to manual measurement.

3.This product can only receive FM radio and the nearby radio signal, can not receive shortwave. If you want to receive shortwave, you can buy matching antenna.

The receiver is now using the latest RTL2832U + R820T2 program, the use of RTL2832U on the Q channel, increasing the frequency of 100KHz-24MHz direct access. To achieve a full reception of 100KHz-1.7GHz.

[R820T2 tuner has a slightly better sensitivity than the R820T, lower noise floor, higher signal to noise ratio. Can work more stably around the frequency of 1.5 GHz. To

Can be connected to the computer, Andrews mobile phones and other equipment using SDR software, receive 100KHz-1.7GHz electromagnetic waves to support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. Can listen to shortwave single sideband communication, FM radio, walkie-talkie calls, aviation bands and so on.

[Through software can crack analog yin, digital tone. To

[You can set the automatic search scan. To

[Can be used to crack the commonly used digital radio ID and demodulate the voice signal]

Direct RTL.SDR technical features.

  • Fully assembled and ready to use

  • Uses RTL2832U+R820T2 chip set

[the R820T2 tuner has slightly better sensitivity than the R820T and also works better at frequencies around 1.5 GHz.]

  • 100KHz to 1766MHz, operating frequency

  • Covers all HF amateur bands

  • Covers VHF & UHF bands from 24-1766MHz

  • Up to 3.2 M Sample rate. (~2.8 MHz stable)

  • Receiver modes AM, NFM, FM, DSB, USB, LSB and CW

  • HF Shortwave Q branch direct sampling

  • Note: depends upon the SDR software used with the receiver

  • 8-bit ADC giving ~50 dB dynamic range

  • 50 Ohm input impedance

  • Double SMA golden antenna connectors

  • Aluminum enclosure screened panels

  • Small size board

  • Freeware software

  • Independent antenna inputs for Shortwave and VHF

  • USB computer connection ( mini usb) Powered by common USB

  • All specifications subject to change without notice

Receiving LF/MF/HF (0 – 30 MHz)

The antenna must be connected to the HF input port

signal receiving HF band needs to meet the HF Antennas such as Long

Wire, Random Wire, Dipole etc.. To have a good effect need

matching antenna.

The program of SDR # with RTL configured to direct sampling of the signal Q, as shown in the following figure

Operation on VHF and UP:

The antenna must be connected to the UV input port

By default the RTL-SDR’s gain is set to zero. Increase this gain

by moving the RF Gain slider up, or by turning on Tuner AGC.

ANTENNA CONNECTION

Direct sampling settings for HDSDR

click on the ExtIO button

Receiving LF/MF/HF (0-30 MHz) Operation on VHF and UP:
